Mitsubishi Electric Trane® 313989

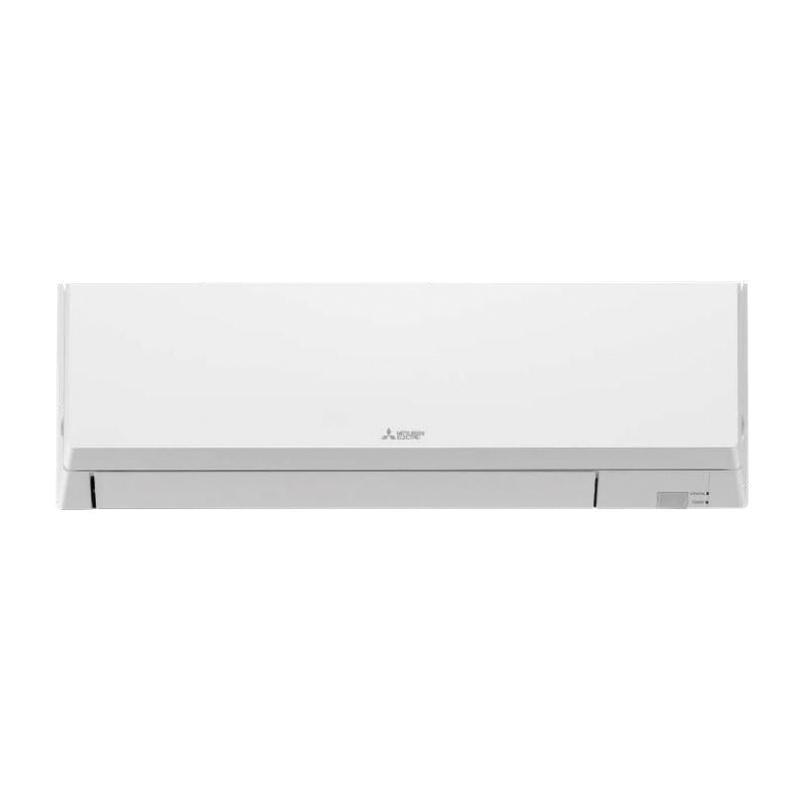

Mitsubishi Electric Trane® PKA-AL18NL Indoor Mini-Split Heat Pump Unit, 208/230 V, 4300 to 18000 Btu/hr BTU, 1 ph
Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 313989
MPN: PKA-AL18NL
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| BTU Rating | : | 4300 to 18000 Btu/hr |
| CFM Rating | : | 215 cfm, 255 cfm, 320 cfm, 375 cfm |
| Color | : | White |
| Connection Type | : | Flared |
| Drive Type | : | Inverter |
| EER Rating | : | 11 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 20 A |
| Mounting Type | : | Wall |
| Overall Height | : | 11-25/32 in |
| Overall Length | : | 9-11/32 in |
| Overall Width | : | 35-11/32 in |
| Phase | : | 1 ph |
| Power Rating | : | 1630 W |
| SEER Rating | : | 19.5 |
| Series | : | PKA Series |
| Sound Level | : | 48 dBA |
| Temperature Rating | : | 66 to 90 deg F |
| Voltage Rating | : | 208/230 V |
Mitsubishi Electric Trane® Indoor Mini-Split Heat Pump Unit, Series: PKA, 208/230 V, 1630 W, 60 Hz, 1 ph, 4300 to 18000 Btu/hr, 215 cfm, 255 cfm, 320 cfm, 375 cfm, 11 EER Rating, 19.5 SEER, Flared Connection, 20 A Fuse Rating, Inverter Drive, 48 dBA Sound Level, Wall Mounting, White, 66 to 90 deg F, 9-11/32 in Overall Length, 35-11/32 in Overall Width, 11-25/32 in Overall Height
- Auto fan speed mode: Automatic adjustment of fan speed
- Ideal PKA spaces: Ideal for spaces such as server rooms, daycare centers, classrooms, churches, small offices, and more
- Light commercial: Units with this icon are suitable for light commercial applications such as small offices, restaurants, and retail.
- Multiple control options, including the comfort app for remote access, third-party interfaces, and both wired and wireless controllers
- Simple installation
- Single-zone: One outdoor unit connects to one indoor unit to control the comfort in a single space.
- Sleek, compact design
- Up and down swing-mode: An indoor unit with this capability can move air up and down throughout the room like an oscillating fan using the horizontalvanes.
- Vane settings: Vane setting for air flow direction control
