| Amperage Rating | : | 6.4 A |
| BTU Rating | : | 86100 Btu/hr |
| CFM Rating | : | 1300 cfm |
| Connection Size | : | 1/2 in |
| Connection Type | : | NPT |
| Dimensions | : | 23-9/16 in H x 30 in W x 26-3/8 in D |
| Efficiency | : | 82 % |
| Fan Size | : | 16 in |
| Finish | : | Baked Enamel |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Liquid Propane Gas, Natural Gas |
| HP Rating | : | 1/10 hp |
| Ignition Type | : | Direct Spark |
| Model | : | GG |
| Phase | : | 1 ph |
| Rotational Speed | : | 1050 rpm |
| Voltage Rating | : | 115 V |

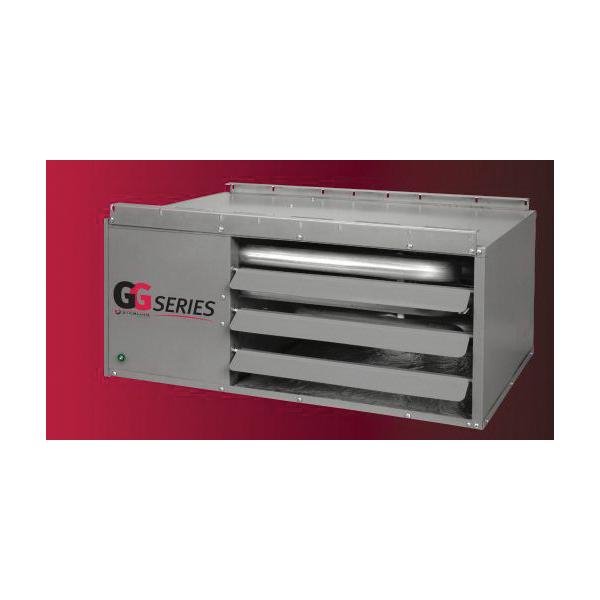

The Sterling model GG low profile gas-fired unit heater is a highly efficient, extremely versatile product. These propeller units combine the latest tubular heat exchanger technology with a unique single orifice burner system. Units are available in sizes ranging from 30 - 120 MBH in a compact, low profile design.
STERLING Unit Heater, Model: GG, 86100 Btu/hr, 115 V, 6.4 A, 1300 cfm CFM Rating, 1/10 hp HP Rating, 1 ph, 60 Hz, NPT, 1/2 in, Liquid Propane Gas, Natural Gas, 16 in Fan Size, 82 % Efficiency, 1050 rpm Rotational Speed, Direct Spark Ignition, Baked Enamel, 23-9/16 in H x 30 in W x 26-3/8 in D
- The sterling tubular heat exchanger has been designed to provide maximum and uniform heat transfer
- Sterling model GG units are built with a proprietary, single orifice burner system - one burner to service and one orifice to change for gas conversion
- Sterling model GG units utilize a direct spark pilotless ignition of the burner, providing fast heat delivery
- Sterling GG units are agency certified for both standard and separated combustion venting
- Residential certification
- 20 ga tubular heat exchangers
- 20 ga jacket panels with baked enamel finish
- OSHA fan guard
- Terminal strip low voltage wiring
- Field convertible to separated combustion with addition of combustion air inlet kit
- Easy access control panel
- 321 stainless steel burner box
- Air pressure switch
- High limit switch
- 20 ga aluminized heat exchanger
