UEi TEST INSTRUMENTS™ 312031

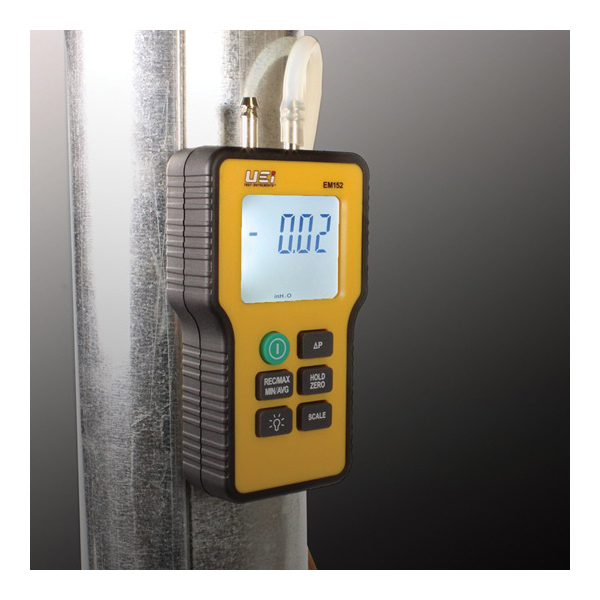

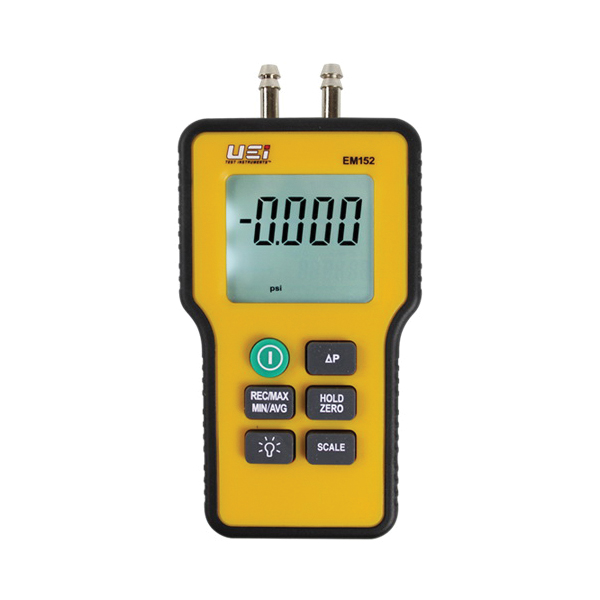

UEi TEST INSTRUMENTS™ EM152 Digital Manometer, +/-2.9 in Measuring Range, +/-0.3 % Accuracy, 32 to 104 deg F

Manufacturer: Kane USA Inc
Brand: UEi TEST INSTRUMENTS™
Part #: 312031
MPN: EM152
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Accuracy      :      +/-0.3 %
Dimensions      :      5.27 in H x 3 in W x 1.5 in D
Measuring Range      :      +/-2.9 in
Temperature Rating      :      32 to 104 deg F

The EM152 measures differential, positive or negative pressure. Units can be selected from any one of 11 options including; in H2O, lb/sq-in, bar, mBar, kPa, in Hg, mm Hg, oz in, ft H2O, cm H2O and kgcm. Features pressure zero, hold and record. A simple hose barb allows for quick tubing connections and is backed by a 1-Year limited warranty.

UEi TEST INSTRUMENTS™ Digital Manometer, +/-2.9 in Measuring, +/-0.3 % Accuracy, 32 to 104 deg F, 5.27 in H x 3 in W x 1.5 in D

  • Dual input differential measurement to +/- 60 in of water column
  • Measures in 11 scales, in H2O, psi, bar, mBar, kPa, in Hg, mm Hg, oz in, ft H2O, cm H2O and kg-cm
  • Magnetic-mount
  • Auto ranging
  • Backlit display
  • Data hold, minimum/maximum
  • Zero button
  • Convenient pressure testing with an easy-to read display, built-in magnet and intuitive interface
  • Functions range of -60 - 60 in H2O, differential pressure

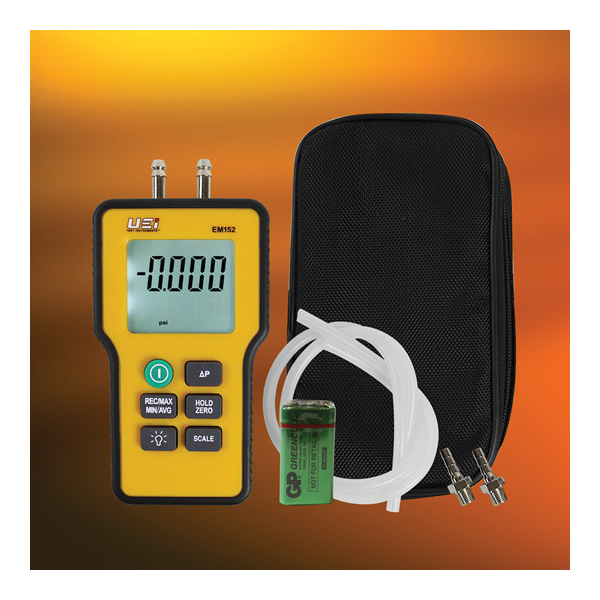

  • Two 18 in L x 1/4 in Dia flexible transparent silicone tubing, Two barbed gas valve fitting, soft pouch, battery and manual
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/UEi_Test_Instruments_AC73_Catalog.pdf
  • Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/UEi_Test_Instruments_EM152_Instruction_Installation_Manual.pdf
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/UEi_Test_Instruments_EM152_Specification_Sheet.pdf
